Elite Engineering, the leader in Oil PCV Catch Can solutions announces the latest addition to their proven line of oil separating Catch Cans with the "Elite Clean Side solution".
The Clean-side solution addresses that small amount of oil vapor that enters the intake air charge upstream of the throttle body during WOT operation when the intake manifold vacuum is not present.
The Clean-side solution allows 100% MAF metered air entry while trapping the oil during wide open throttle operation and allowing it to return back into the valve cover as soon as the throttle is lifted.
Simply installs as a direct replacement for your stock Oil Fill Cap allowing you to delete and replace the stock OEM hose.
At 1/2 the cost of the plastic hollow GM unit, our aluminum clean-side separator incorporates an internal coalescing material. Simply unscrew the top for a quick inspection or cleaning.
Available in the most popular color Black, other GM colors are coming soon!
This is a direct replacement for your stock Oil Fill Cap. Comes with vacuum caps and fittings if needed to connect to your intake air inlet tube.
Models for both the V8 AND V6 GM engines.
Although app. 90-95% of the oil ingestion via the intake air charge enters via the "Dirty" or "foul" side of the PCV system, the other 5-10% enter via back flow through the factory "clean" or "fresh" side tube. This occurs mainly when accelerating or at wide open throttle when intake manifold vacuum drops to zero and crankcase pressure is allowed to build. This pressure will seek the path of least resistance, which is backwards flowing into the intake air bridge assembly bringing in oil mist and other contaminants into the intake air charge. While this will not cause severe issue with a port injection daily driven engine, it will cause detonation and reduced power and fuel economy, and in a performance engine, especially forced induction, this detonation is detrimental to power and the resulting knock retard is a negative tuners and owners should avoid, especially if the engine is run hard for extended periods such as road racing, drag racing, or aggressive driving period.
With a direct injection engine, this contributes to the intake valve coking issues all DI engines experience.
The Elite clean side separator is similar to the GM 1LE plastic unit in function, retaining a emissions compliant close system, but is superior in several ways. #1, it is made of billet 6061 T6 aircraft grade aluminum unlike the plastic GM unit that may break if used in sub-freezing temperatures. (the Elite unit can safely be used in all temperatures. It also contains stainless steel coalescing media in the separation chamber to trap and retain the oil for the periods of low or no intake manifold vacuum VS the GM unit being a simple empty chamber. This allows most of the oil to be trapped VS a smaller percentage, and also returns it to the valve cover as soon as vacuum returns during deceleration, idle, or cruise.
If you have a catch can with only a single evacuation suction source, this is an absolute must. If you are using the E2 or E2-X with dual outlets and check valves that utilizes 2 separate evacuation suction sources, then this is beneficial to trap the small amount of oil that came back-flow during the brief period of the checkvalves closing and opening to always default to the strongest suction source.
No matter what brand catchcan you run, the Elite billet Cleanside Separator is a benefit.
With the vented breather, cans, and tanks that break the closed PCV system giving grounds to void your warranty as well as being illegal for street use in all 50 States, this is a very affordable solution (app. 1/2 the price of the GM plastic unit) that retains an emissions compliant closed system and accomplishes all a breather does and more.

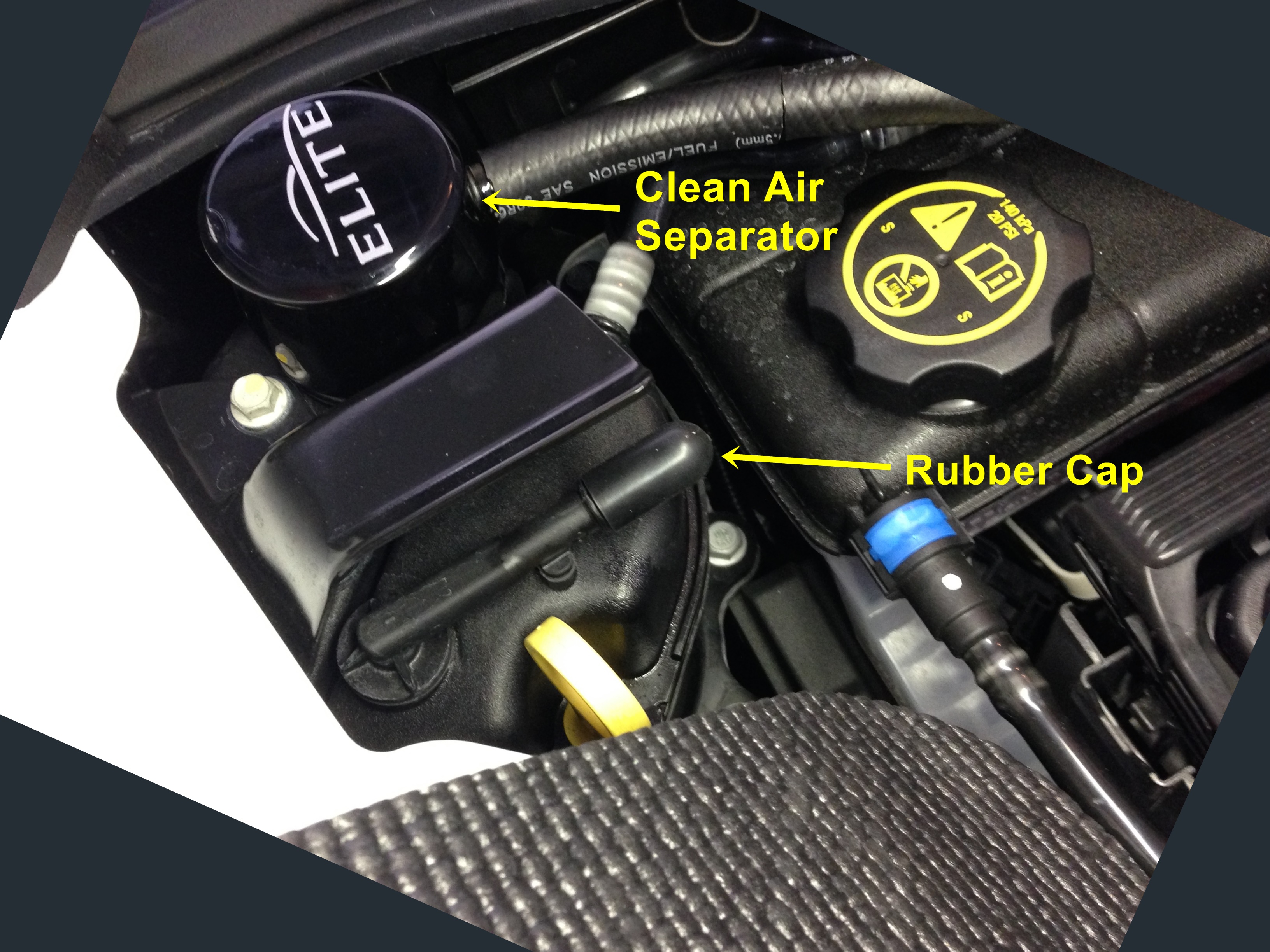

Here's a picture of it installed on a 2014 Corvette Stingray:
Added to the Elite original Catch Can, or New E2 Catch Can, this is your COMPLETE PCV Oil Ingestion Solution.
Do it once, and do it right!
Elite Engineering Catch Can: Often Imitated, but never Duplicated!
Posted by Unknown on 20th Jan 2020
Not a hard install but could have included some instructions
Posted by Charlie on 2nd Dec 2019
Great quality and dressed up the engine bay all the while working.
Posted by Unknown on 18th Jun 2019
Fit up on a 2017 C7 Grandsport...product fits up very well and looks factory. Very easy to install and tubing fits in factory clips for a factory look. They did miss shipping the rubber plug to cover factory remote sump port, but customer service was quick to response to my email (same day) and had part shipped out next business day. Mistakes happen...all I can ask for is great and responsive customer service, and Elite did just that.
Posted by Unknown on 6th Jun 2019
Great materials and workmanship. Only wish you made systems for more applications.
Posted by Jay on 1st Mar 2019
Wish I would’ve purchased this years ago . Throttle body and intake tube no longer has any oil residue . I would highly recommend this for any performance car .
Posted by Ronald Doucette on 25th Feb 2019
Exactly what I was looking for and expecting. Had one question about an adapter size and received immediate answer thru email.
Posted by Smitty on 21st Mar 2018
Looks good seems to work well .happy with product so fsr
Posted by Unknown on 25th Sep 2016
Just installed the clean side seperator today. Very easy install should take care of the blow by.
